Guaranteed Quality
Easy Maintenance

Motor operating duty cycle high enough which can sustain intensive use.
Manual release is available when meeting emergencies.

Light Weight

Quality Guarantee

Stable Operation

High Compatibility

Manual Release

Easy Installation

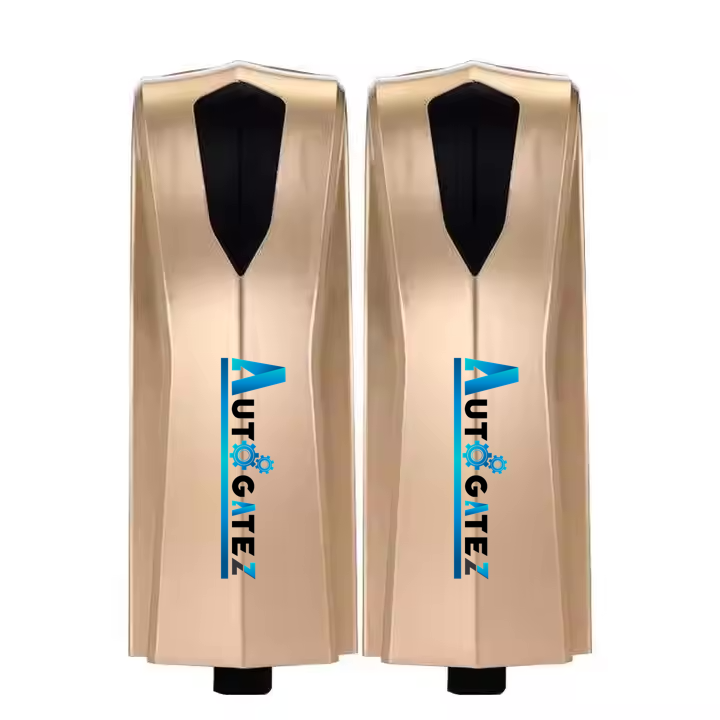

AG-600 Swing Roller Motor Series

Features

Easier & quicker setup procedure

More stable close-distanced operation (RF range: 50m)

PERFECT FOR 4M GATE/LEAF & 600KG-WEIGHT GATE/LEAF
Opening angle can be 180° MAX

Key release for power failure.
Functions for adjustment.
Slowdown area for smoother operation.
Several operation modes to meet different installation scenario.

Specifications
SpecificationAG-600 DC
Leaf Length4M
Leaf Weight600Kg
Motor Power Supply220–240VAC (50–60Hz)
Rated Power160W
Operating Temperature-20°C to +50°C
Waterproof RatingIP44
Max Angle180 Degree

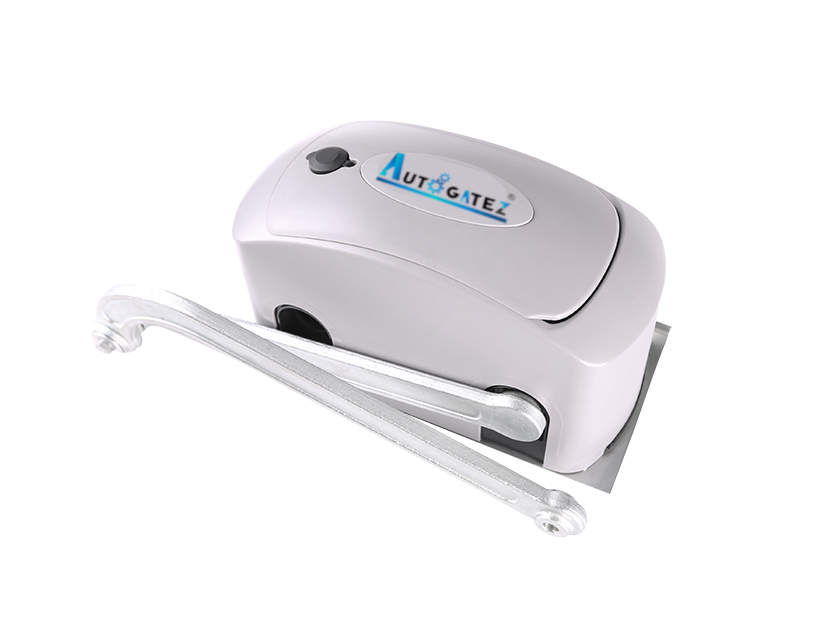

AG-500 Crank Motor Series

Features

Perfect Choice for Swing gates under 500 kg
-Motor operating duty cycle high enough which can sustain intensive use
-High flexibility on installation

Easy Manual Release
Key manual release is available when meeting emergencies

Specifications
SpecificationAG-500 ACAG-500 dC
Max Gate Length4M2.5M
Max Gate Weight500Kg500Kg
Rated Power110W180W
Power Supply220–240VAC (50–60Hz)220–240VAC (50–60Hz)
Motor Power Supply220–240VAC24VDC
Peak Thrust380NM470NM
Operating Temperature-20°C to +50°C-20°C to +50°C
Manual ReleaseKeyKey

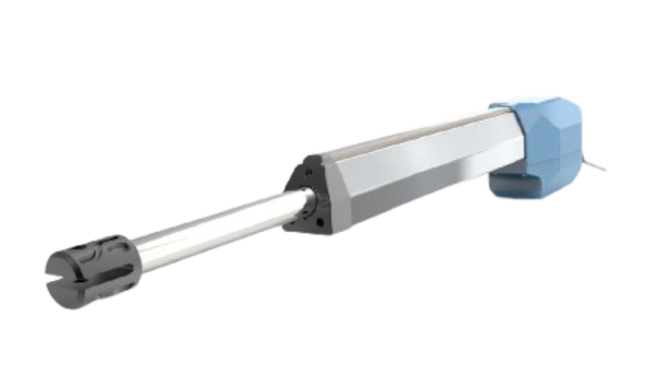

AG-1000 Heavy Duty Series

Features

Perfect Choice for Swing gates under 1000 kg
-Motor operating duty cycle high enough which can sustain intensive use
-High flexibility on installation: no left/right motor differentiation

Easy Manual Release
Key manual release is available when meeting emergencies

Smart Control
-Drived by thread pole
-Mechanical limit switch
-Heavy duty motor

Specifications
SpecificationaG-1000 ACAG-1000 DC
Max Gate Length3M3M
Max Gate Weight1000Kg1000Kg
Gear TypeThread GearThread Gear
Power Supply220–240VAC (50–60Hz)220–240VAC (50–60Hz)
Motor Power Supply220–240VAC24VDC
Rated Power150W100W
Operating Temperature-20°C to +50°C-20°C to +50°C
Manual ReleaseKeyKey

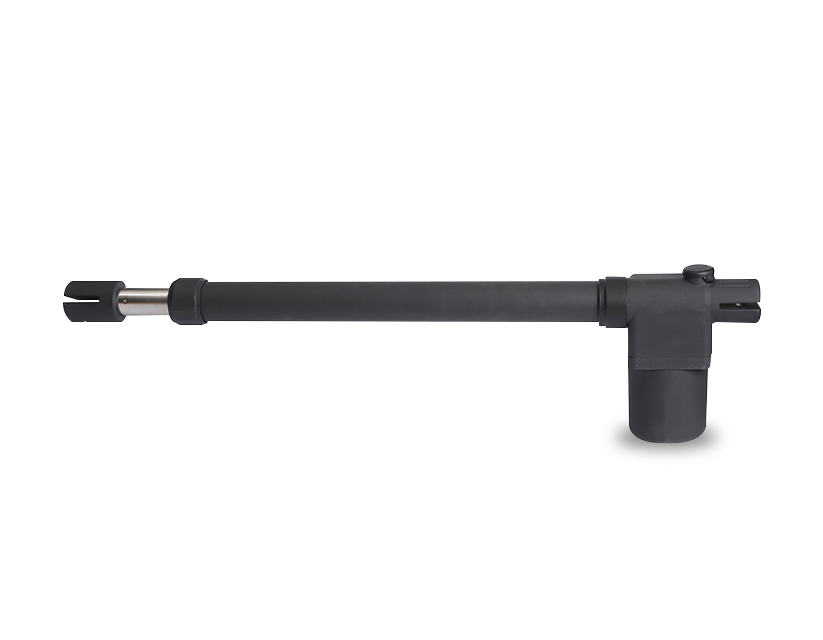

AG-500 Arm Type Swing Series

Features

Ideal Choice for Swing gates up to 500 kg
-Motor operating duty cycle high enough which can sustain intensive use
-Variety selection: 500 kg per leaf

Quick Release Device
-Manual release on the top for easy operation
-Using specific key to release which is more secure

Smart Control
-Drived by worm gear
-Medium duty motor

Specifications
Specificationag-500 at
Max Gate Length4M
Max Gate Weight500Kg
Gear TypeWorm Gear
Power Supply220–240VAC (50–60Hz)
Motor Power Supply24VDC
Peak Thrust3000N
Operating Temperature-20°C to +50°C
Manual ReleaseKey

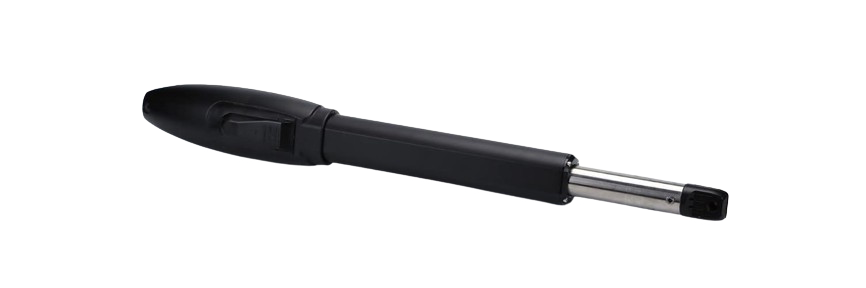

AG-350 Arm Type Swing Series

Features

Ideal Choice for Swing gates up to 350~450 kg
-Motor operating duty cycle high enough which can sustain intensive use
-Variety selection: 300 kg/350 kg/450 kg per leaf for Mastiff series

Quick Release Device
-Manual release on the top for easy operation
-Using specific key to release which is more secure

Smart Control with CB series
-Remotely open and close gates with Chow! App
-Programming the motor through Chow! App
-Secure your house even better with ChowCAM and ChowBELL

Specifications
Specificationag-350
Max Gate Length3.5M
Max Gate Weight350Kg
Gear TypeWorm Gear
Power Supply220–240VAC (50–60Hz)
Motor Power Supply220–240VAC (50–60Hz)
Rated Power280W
Operating Temperature-20°C to +50°C
Manual ReleaseKey

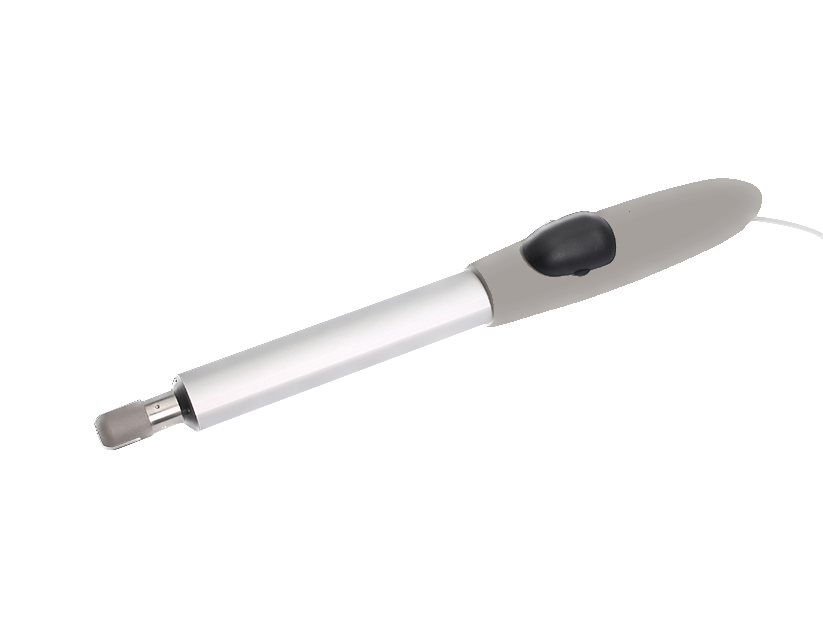

AG-300 Arm Type Swing Series

Features

Quicker and Easier
-Easy access to limit switch: removable cover on the top of the motor makes it quicker to adjust the limit switch

Ideal Choice for Swing gates up to 300~350 kg
-Motor operating duty cycle high enough which can sustain intensive use
-Manual release on the top for easy operation

Specifications
SpecificationAG-300
Max Gate Length3M
Max Gate Weight350Kg
Gear TypeWorm Gear
Power Supply220–240VAC (50–60Hz)
Motor Power Supply24VDC
Rated Power160W
Operating Temperature-20°C to +50°C
Manual ReleaseKey

AG-300 AT Arm Type Swing Series

AG-250 Arm Type Swing Series

Features

Spaceless Installation for gates under 250 kg
-Suitable for small gate installation, especially when there’s an installation space limitation

Variable Motor Type
-Customers can choose to use hall sensor, limit switch or stopper based on the requirements
-Aluminum die-casting and steel metal stamping arms are available

Specifications
SpecificationAG-250
Max Gate Length2.5M
Max Gate Weight250Kg
Gear TypeWorm Gear
Power Supply220–240VAC (50–60Hz)
Motor Power Supply24VDC
Peak Thrust1000N
Rated Power100W
Operating Temperature-20°C to +50°C
Features

Perfect Choice for Swing gates under 300 kg
-Motor operating duty cycle high enough which can sustain intensive use
-High flexibility on installation: no left/right motor differentiation

Easy Manual Release
-Key manual release is available when meeting emergencies

Specifications
Specificationag-300 at
Voltage220V / 240V; 50–60Hz
Motor Power SupplyDC 24V
Max. Gate Weight300Kg / per leaf
Max. Gate Length3M / per leaf
Gear TypeWorm Gear
Operating Temperature-20°C to +50°C
Rated Power100W
Manual ReleaseKey

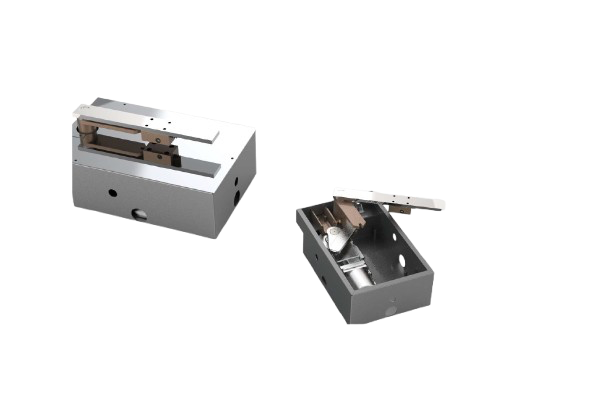

AG-U1 Underground Series

Features

Aesthetic Appeal and Space-Saving
-The invisible Gate Opener
-Designed to operate down below the ground which has no apparent motor structure attached on the gate.

Adjustment Capabilities
-DC swing system for better speed adjustment and slow down.
-Adjustable Open and Close points to determine the travel easily.

Safe & Easy To Operate
-Key release design for power failure.
-Compatible with safety device and access control system .
-Easy parameters adjusting with digits led display and buttons.
-Attachment available for 180° opening

Specifications
Specificationag-u1
Power Supply220V / 240V; 50Hz–60Hz
Max. Gate Weight500Kg / per leaf
Max. Gate Length3.5M / per leaf
Force700N
Protection ClassIP 67
Power300W
Manual ReleaseKey
